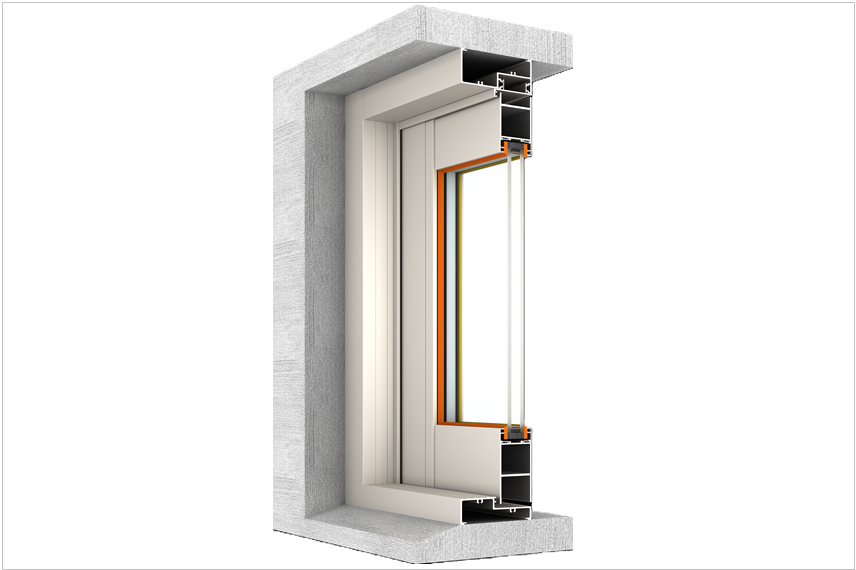

More About Z100 Casement Door - Open Outside

Zoho 100 Casement doors are a type of door that is hinged on one side and opens outward, typically with a crank handle or lever.

Features

  • Hinged on one side

    Casement doors are hinged on one side, allowing them to open outward.

  • Crank handle or lever

    Casement doors often feature a crank handle or lever that makes it easy to open and close the door.

  • Outward opening

    Casement doors open inward, which can be beneficial for creating a wide opening and allowing for easy access.

  • Multi-point locking

    Casement doors often feature multi-point locking systems, which provide enhanced security and weather-tightness.

Technical characteristics

  • Maximum height :

    3000 mm

  • Maximum window panel width :

    1000 mm

  • Maximum adaptive weight:

    100 kgs

  • Available glazing :

    Double-glazed – up to 22mm LGU

  • Frame depth :

    108 mm

  • Bottom frame height :

    35 mm

  • Extrusion profiles :

    6063-TS with 1.8 mm thickness

Design Standards: AS 2047

  • Wind pressure :

    2000 - 4000Pa

  • Design Water Resistance :

    450Pa

  • Sound lnsulation:

    32 - 36DB

  • Heat insulation :

    3.0 - 4.5 w2/k

  • SHGC Range :

    0.30 - 0.40
